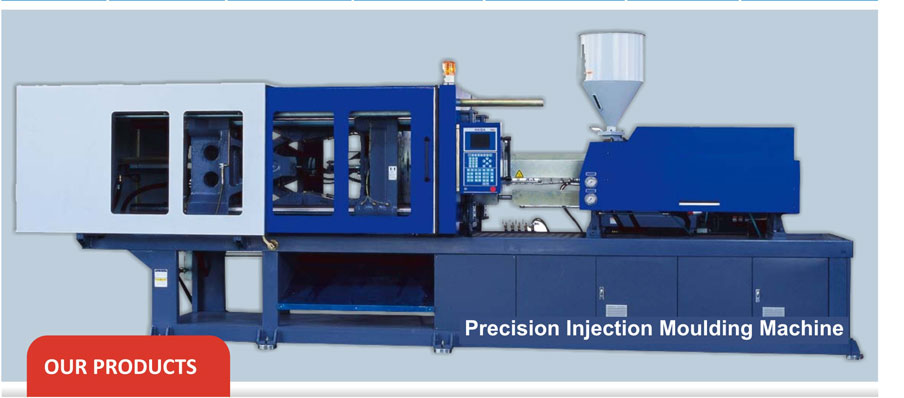

Precision Injection Moulding Machine

Vertical injection moulding machine


  Precision Injection Moulding Machine

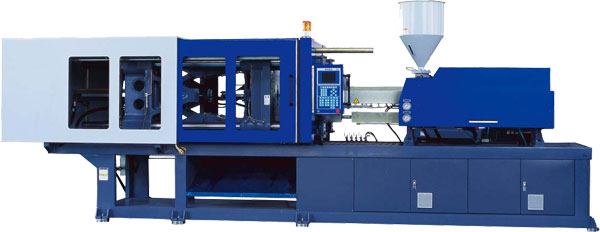

Plastic Injection Moulding Machine
Specification
Sheet
KPM 40
KPM 80
KPM 100
KPM 150
KPM 200
Injection
Unit
A
A
A
A
A
Screw Diameter
mm
28
35
45
50
55
Screw LD Ratio
-
20:1
18.1
18.1
18.1
18
Max. Swept Volume
cm3
86
168
317
431
555
Max. Shot Weight
gms
80
130
160
300
400
Max. Injection Pressure
kg/cm2
1500
1500
1540
1650
1500/2000
Rate of Injection
cc/sec
60
90
115
165
213
Screw Speed
rpm
0-350
0-360
0-360
0-360
0-360
Nozzle Stroke
tons
3.0
3.0
5
5
6
LOCKING UNIT
Mould Clamping Force
tons
40
80
100
150
200
Mould Clamping Stroke
mm
200
280
330
400
450
Mold Thickness (Min-Max)
mm
125-305
130-340
150-430
200-475
200-560
Max Day Light Opening
mm
530
620
740
850
1010
Space Bet. Tie Rod (HXV)
mm
305x305
350x350
450x400
480x480
530x530
Size of Platen
mm
450x450
530x530
620x620
715x715
740x740
HYDRAULIC EJECTOR
Ejector Stroke
mm
50
65
85
110
110
Ejection Force
tons
2
3.0
4
6
5
GENERAL
Electric Motor
Hp
7.5
10
15
20
25
Heating Capacity
Hp
5.0
7.0
10.4
12
15
Total Connected Load
Hp
12.5
17.0
30.4
37
45
Tank Capacity
ltr
150
200
250
300
400
Machine Weight
tons
2
2.75
4.5
5.5
7.5
Approx Space ( LxWxH)
mtr
3.25x1x1.5
4x1x1.7
4.5x1.5x2.0
5x2x2.2
6.2x1.75x2.5
This Specifications are subjected to change without prior notice.
INJECTION UNIT :
 Double cylinder injection unit ensure fast & stable Injection.
 5 Stage pressure/speed programmable Injection.
 Melt decompression before or after plasticising.
 Cold start preventation.
 Delay start of plasticising.
 Swiveling Injection unit facilitate replacement or cleaning of nozzle & screw.
 Adjustable back pressure control.
 Nitrided wear resistant Screw and Barrel.
 Accurate temperature control with high and low setting of all zones with indication.
 Heater current display for all zones.
 Injection Screw directly driven by a high - torque hydraulic motor with 99 steps speed.

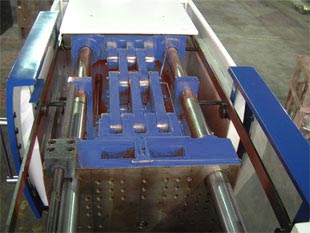

CLAMP UNIT :
 Motorised mould height adjustment.
 Automatic Lubrication
 5 Pont twin toggle mechnism
 Ejector forward & retract in 2 stages.

Injection Unit
